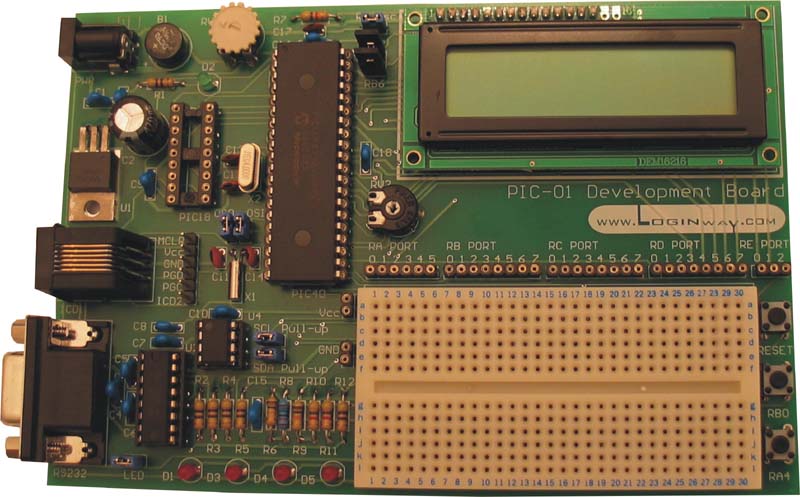

PIC-01 Development Board

PIC-01 Development Board

The PIC-01 Development Board demonstrates the capabilities of many of the 18-, 28- and 40-pin PIC16XXXX and PIC18XXXX devices. It can be used with many types of In-Cirucit Programmers / Debuggers (e.g. ICD2, PICkit2). Ideal platform for learning about PIC microcontrollers.

The kit includes PIC16F877A microcontroller. It is one of the most popular PIC micros, which features 8k flash program memory, 256 bytes of EEPROM data memory, 2 Comparators, 8 channels of 10-bit Analog-to-Digital (A/D) converter, 2 capture/compare/PWM functions, the synchronous serial port can be configured as either 3-wire Serial Peripheral Interface (SPI™) or the 2-wire Inter-Integrated Circuit (I2C™) bus, a Parallel Slave Port and a Universal Asynchronous Receiver Transmitter (USART). All of these features make it ideal for beginners and more advanced users.

The PIC Development Board Features:

  • An active program loaded on the installed PIC16F877A microcontroller
  • 2×16 LCD
  • Solderless prototyping area
  • Active RS 232 port
  • 4x LED
  • 2x push-button switch and master reset
  • 2x ICSP connector (MPLAB ICD 2 connector and header – compatible with the Pickit2)
  • Serial EEPROM
  • Possibility of choosing different clock frequencies
  • RC oscillator
  • 32.768kHz crystal for RTC (Real Time Clock)
  • Pot connected to ADC input (Analog-to-Digital Converter)
  • Easy access to all ports

Docs:

Schematic (.pdf)
Layout (.pdf)
User’s Guide (.pdf)
Demo.hex (.rar)

Buy:

Product Code Availability Price Buy
PIC-01 Development Board PIC-01 A DISCONTINUED £ 44.95

You do not need the PayPal account. Use your PayPal account for a quick payment or skip the registration and pay by credit card.

—————————————————————————————————————————–

R8C/13 Development Board

R8C/13 Development Board

The R8C/13 Development Board integrates low pin count but powerful R8C/13 microcontroller. It can be programmed through RS232 and USB, or can be used with Renesas E8 hardware debugger through dedicated E8 compatible connector.

The kit includes R5f21134DFP microcontroller. It is a member of still growing Renesas R8C family, and features 16kB of embedded flash program memory, 2kB bytes of data flash memory, and 1kB of RAM, 12 channels of 10-bit Analog-to-Digital (A/D) converter and 2x Universal Asynchronous Receiver Transmitter (UART). All of these features make it ideal for beginners and more advanced users. Renesas also provides free development tools, including good free C compiler.

The R8C/13 Development Board Features:

  • An active program loaded on the installed R8C/13 Renesas microcontroller
  • 2×16 LCD
  • Prototyping area
  • 2x Active RS 232 port
  • USB port
  • Powered from USB or external power supply
  • 8x LED
  • 4x push-button switch and master reset
  • Programming through RS232, USB or E8 connector
  • 20MHz crystal
  • Pot connected to ADC input (Analog-to-Digital Converter)
  • Easy access to all ports

Docs:

Schematic (.pdf)

Buy:

Product Code Availability Price Buy
R8C/13 Development Board R8C A DISCONTINUED £ 54.95

You do not need the PayPal account. Use your PayPal account for a quick payment or skip the registration and pay by credit card.

—————————————————————————————————————————–

LPC2148 Development Board

LPC2148 Development Board

The LPC2148 Development Board integrates LPC2148 microcontroller. It can be programmed through RS232 and USB, or can work with JTAG through dedicated 20-pin compatible connector.

The kit includes Philips/NXP LPC2148 microcontroller. It has ARM7TDMI-S processor core with 512kB flash, 32kB RAM, full-speed USB 2.0 core, 14 channels of 10-bit Analog-to-Digital (A/D) converter , 1 Digital-to-Analog (D/A) and 2x Universal Asynchronous Receiver Transmitter (UART), 2x Serial Peripheral Interface (SPI™), 2x Inter-Integrated Circuit (I2C™) bus and 6-channel PWM. All of these features make it ideal for beginners and more advanced users. The board can be integrated with free development tool chain, such as the GNU ARM.

The LPC2148 Development Board Features:

  • An active program loaded on the installed LPC2148 microcontroller
  • 2×16 LCD
  • Prototyping area
  • 2x Active RS 232 port
  • 2x USB
  • 8x LED
  • Programming through RS232, USB or JTAG connector
  • 4x push-button switch and master reset, isp/int
  • 32.768kHz crystal for RTC (Real Time Clock) and low power
  • 12MHz crystal for full-speed
  • Pot connected to ADC input (Analog-to-Digital Converter)
  • MMC/SD connector
  • 3V battery connector
  • Powered from USB or external power supply
  • Easy access to all ports

Docs:

Schematic (.pdf)

Buy:

Product Code Availability Price Buy
LPC2148 Development Board LPC A DISCONTINUED £ 69.95

You do not need the PayPal account. Use your PayPal account for a quick payment or skip the registration and pay by credit card.

For 5+ items contact me using a contact form provided.
Discounts for resellers.
